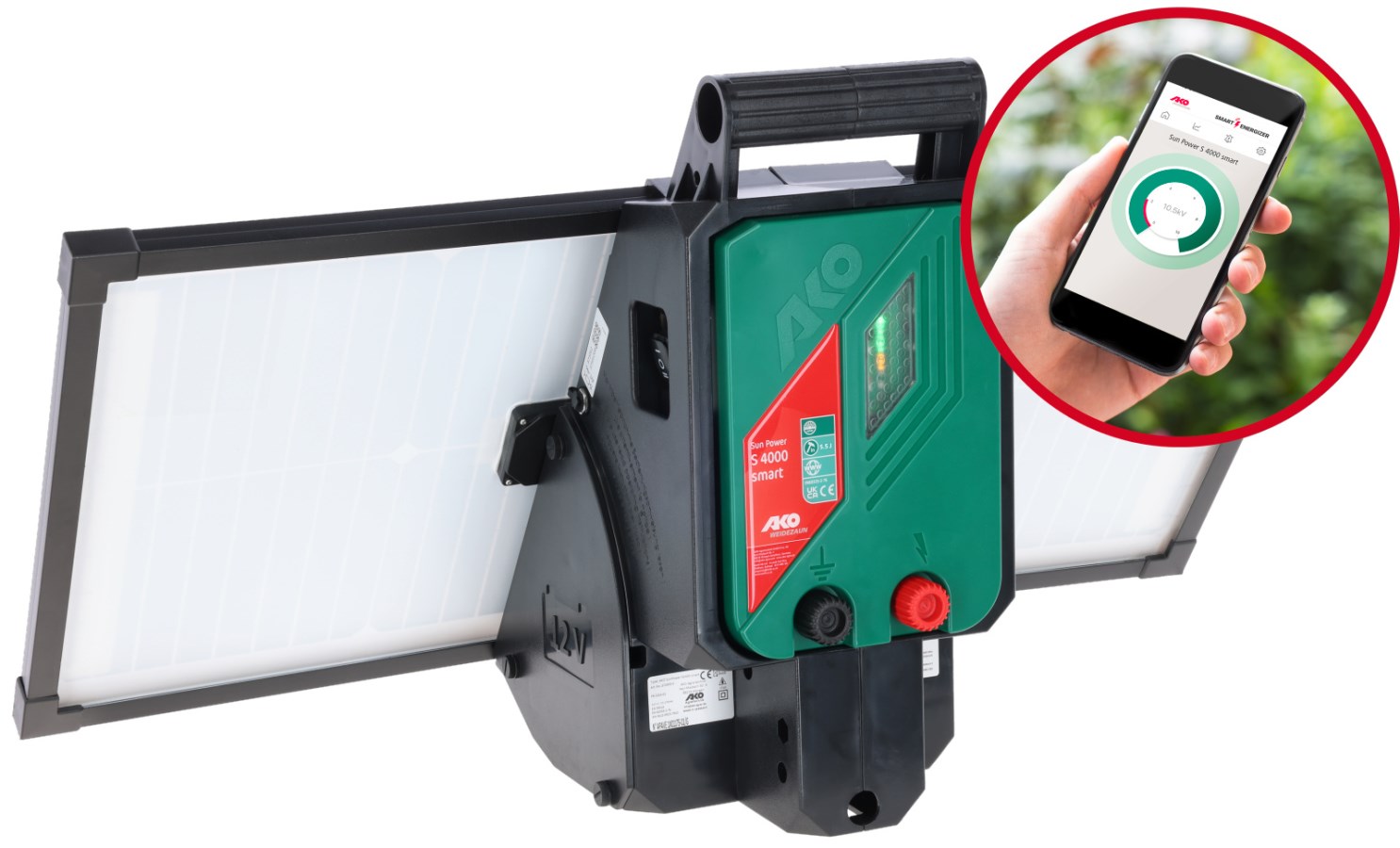

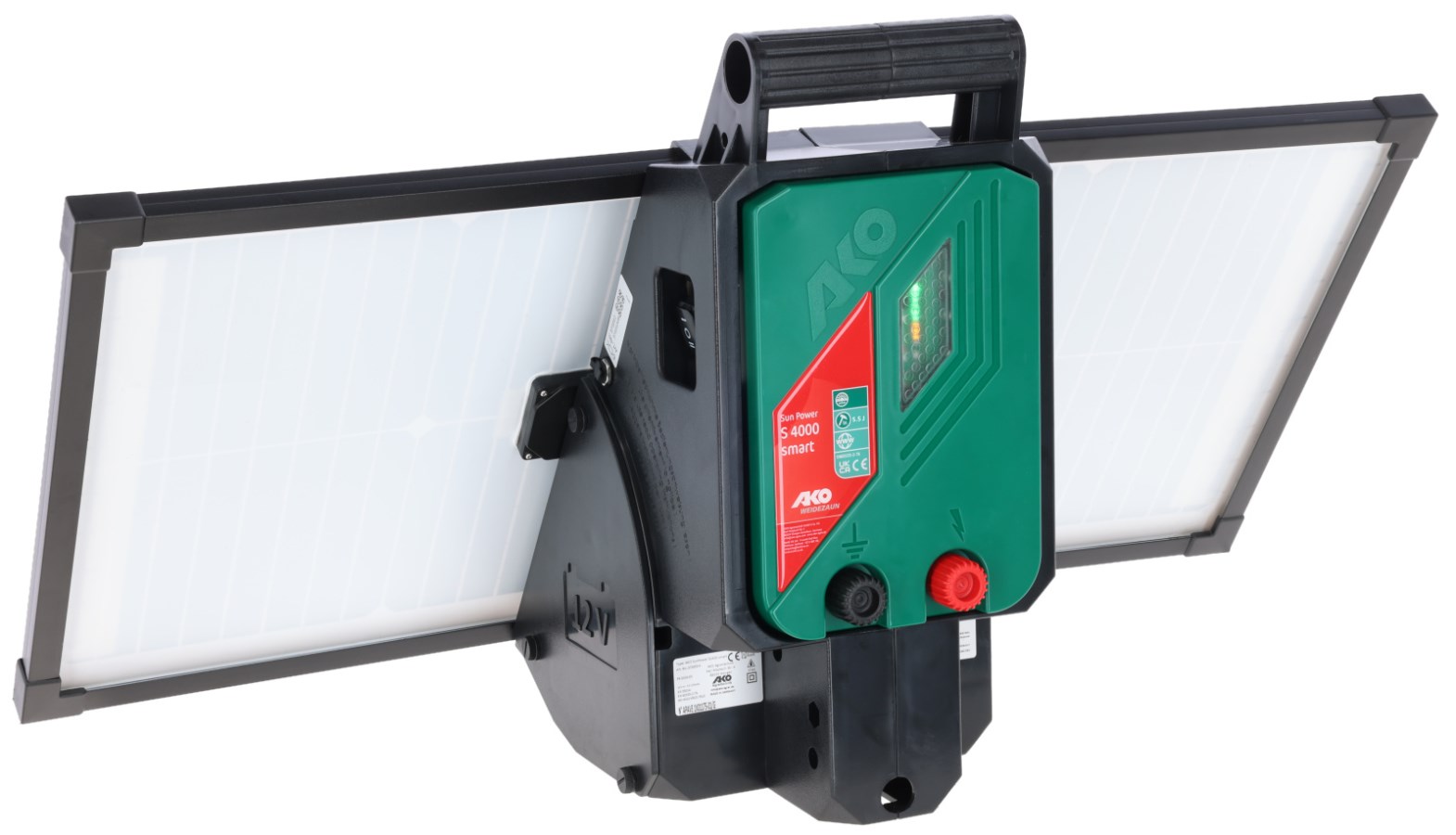

Sun Power S 4000 smart

our most powerful, smart all-round compact solar unit
directly integrated cloud connection
distance-neutral control (ON/OFF, GPS tracking) and monitoring of fence systems
permanently free mobile data transfer to the app
if the protection voltage falls below the pre-set minimum level, the user is notified with a real-time alert in the free app on their smartphone
can be used with light to medium vegetation, universally for all standard fences

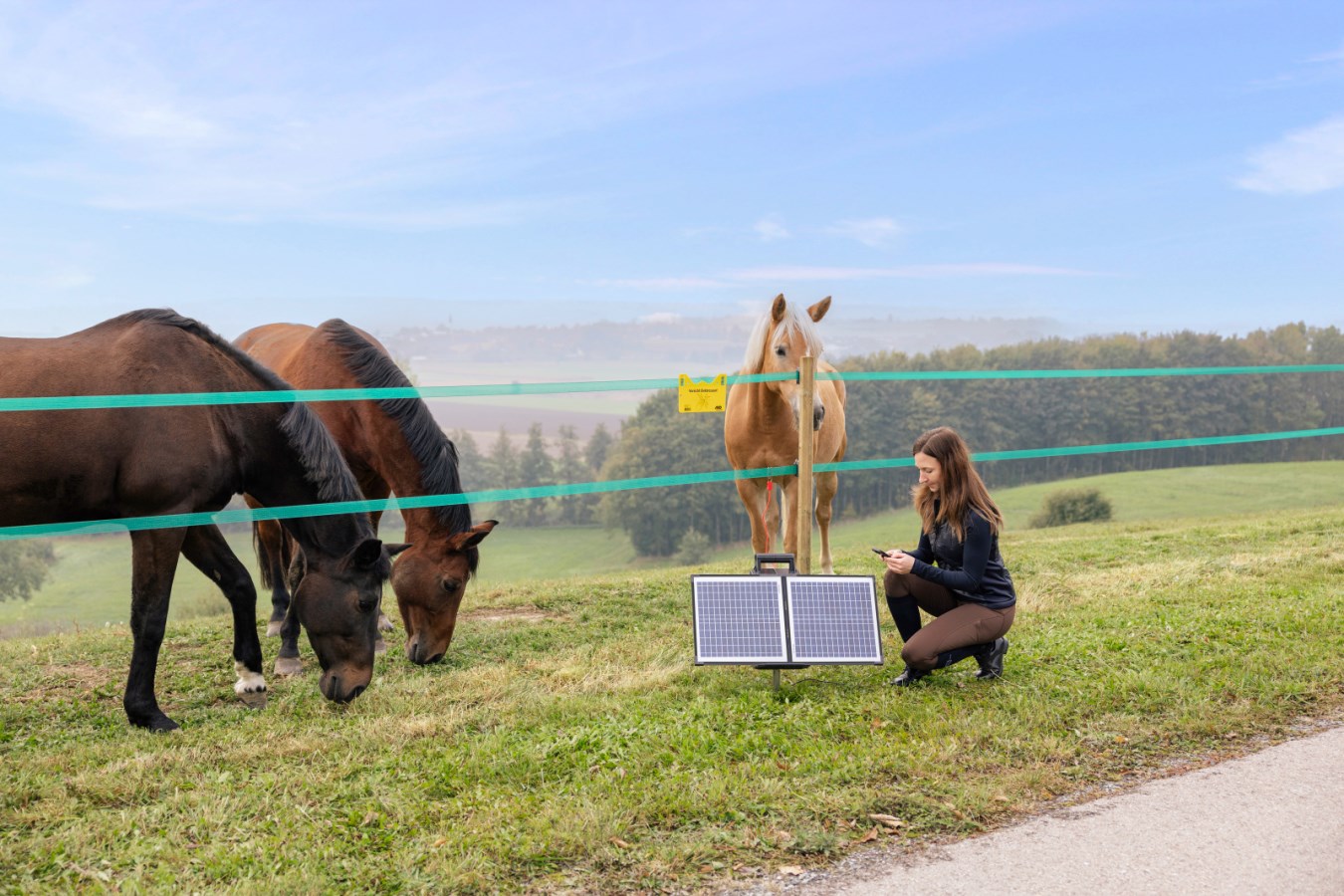

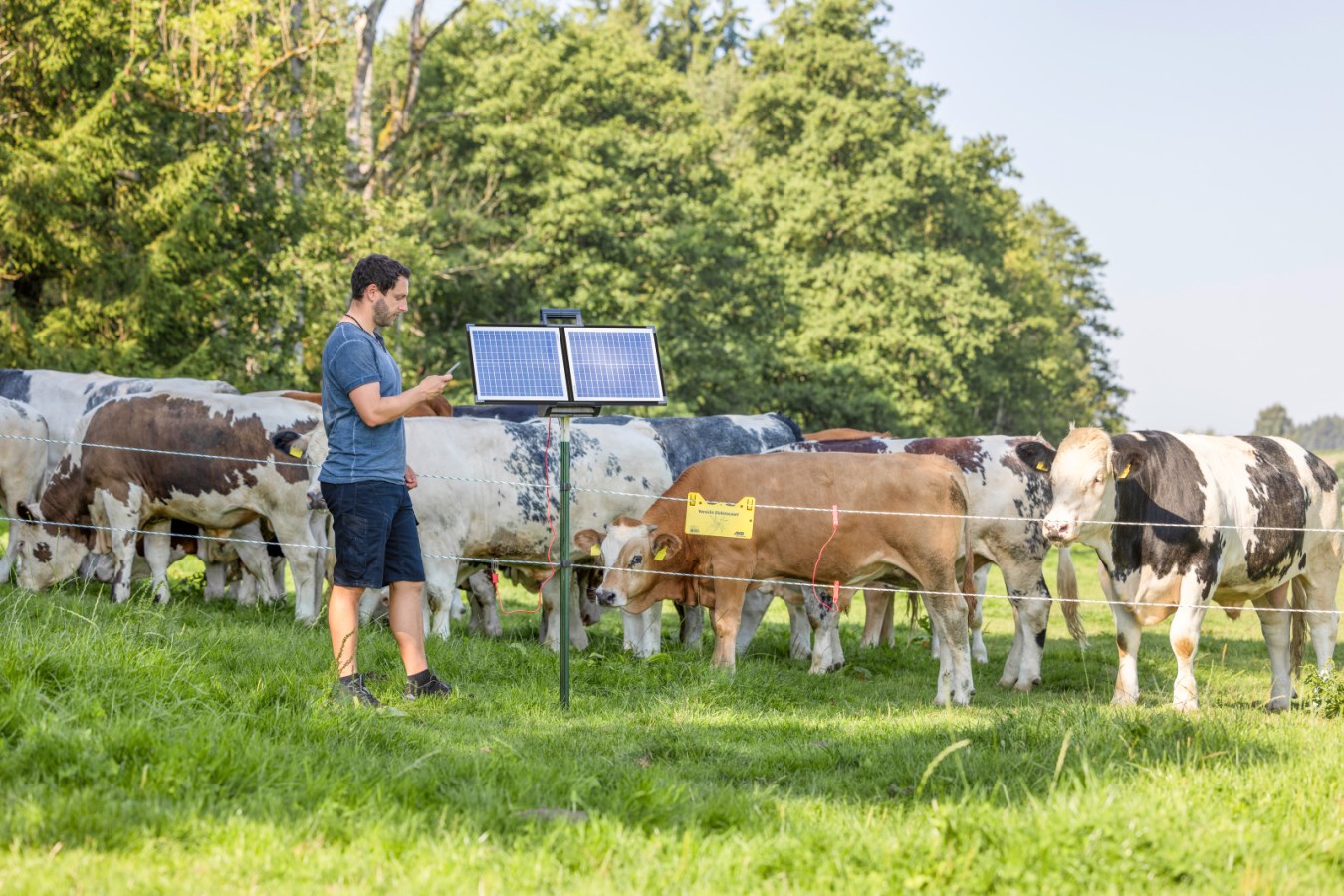

ideal for horse and cattle paddocks, goats, sheep and wolf

multi-coloured LED bar graph display for output voltage and battery control plus solar operation LED (blue)

Ref. no.	PU	Pallet
372954	1	24 PAL

optimised for permanent, maintenance-free operation right through the main pasture season
with High/Low/Off switch
integrated lightning protection
intelligent, modern battery management with deep discharge protection – device functions even during extended periods of bad weather
excellent level of efficiency – therefore a longer battery life
very robust, weather-resistant, water-tight casing with carrying handle
fast and easy to install
power saving switch for when battery voltage fails
additional power saving function when the fence status is good
5-year performance guarantee on the solar module
microprocessor controlled
very bright, clearly visible LED light
corresponds to applicable EU safety standards
Functions: Herding the animals during the run

Model
S 4000 smart
Ref. no.	372954
Stored Energy	5.5 J
max. discharge energy	4 J
max. voltage	11900 V
Voltage in Open Circuit	10300 V
Voltage at 500 Ohms	8400 V
theoretical fence length as per VDE	110 km
max. fence length without vegetation	35 km
max. fence length with medium vegetation	9 km
max. fence length with high vegetation	4 km
Approx. Number of Electrifiable Nets	16
Qty 1 m earth posts	2
Power Consumption	120 mA - 300 mA

Model	Ref. no.	Stored Energy	max. discharge energy	max. voltage	Voltage in Open Circuit	Voltage at 500 Ohms	theoretical fence length as per VDE	max. fence length without vegetation	max. fence length with medium vegetation	max. fence length with high vegetation	Approx. Number of Electrifiable Nets	Qty 1 m earth posts	Power Consumption
S 4000 smart	372954	5.5 J	4 J	11900 V	10300 V	8400 V	110 km	35 km	9 km	4 km	16	2	120 mA - 300 mA

Model	S 4000 smart
Ref. no.	372954
Stored Energy	5.5 J
max. discharge energy	4 J
max. voltage	11900 V
Voltage in Open Circuit	10300 V
Voltage at 500 Ohms	8400 V
theoretical fence length as per VDE	110 km
max. fence length without vegetation	35 km
max. fence length with medium vegetation	9 km
max. fence length with high vegetation	4 km
Approx. Number of Electrifiable Nets	16
Qty 1 m earth posts	2
Power Consumption	120 mA - 300 mA

1 x solar fence device*
1 x AGM battery, 12 volt, 18 Ah (441125)*

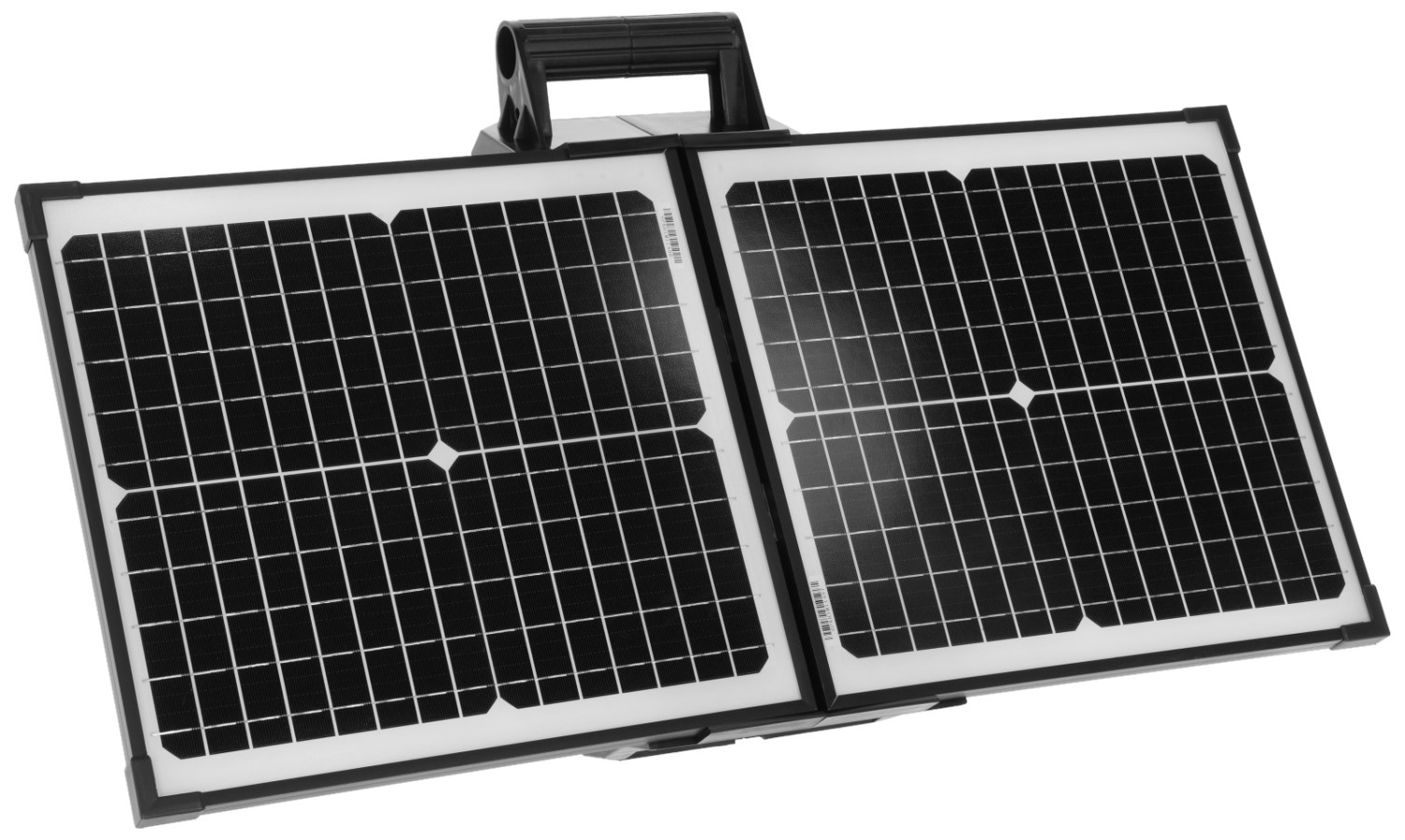

1 x 12-Volt crystalline solar module, 40 Watt (not assembled) *
1 x 230-Volt power pack (371012)
1 x fence connector cable
1 x ground connector cable
1 x two-part ground/installation spear (442385)
1 x warning sign
* Warranty: solar fence device (5 year warranty), solar module (5 year performance warranty), 12 volt battery (6 month warranty)
