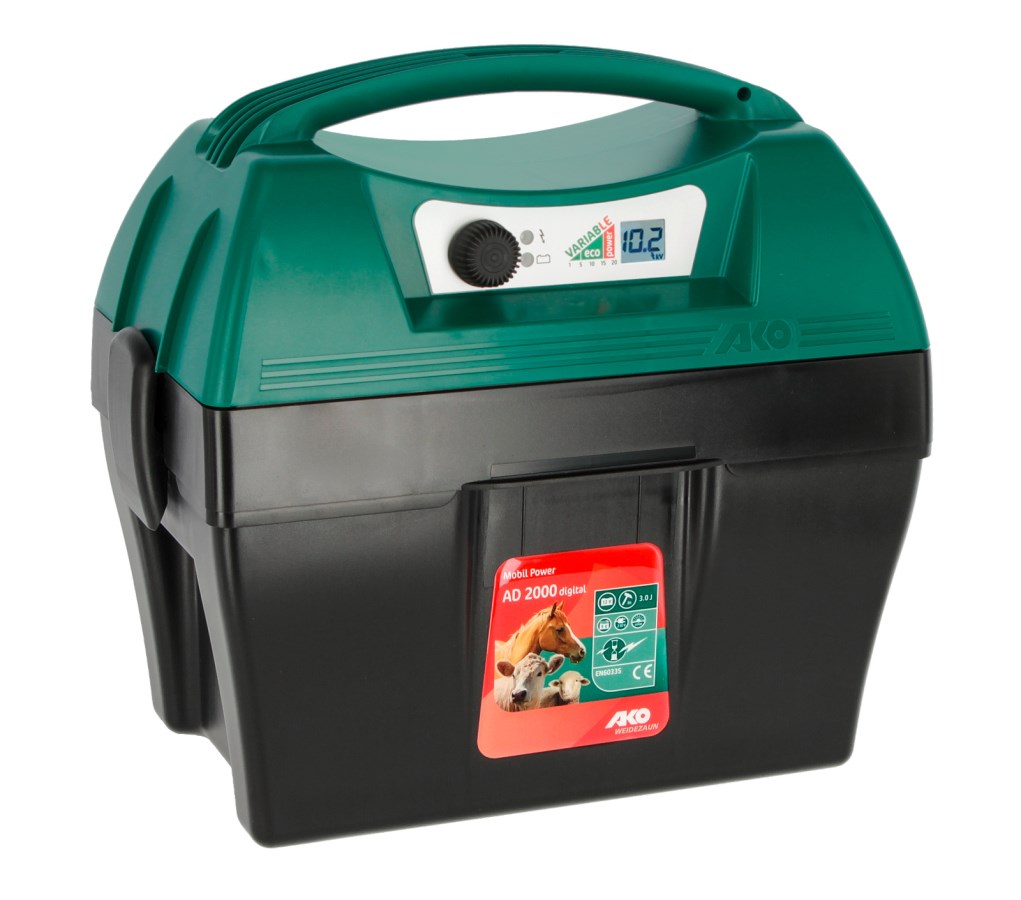

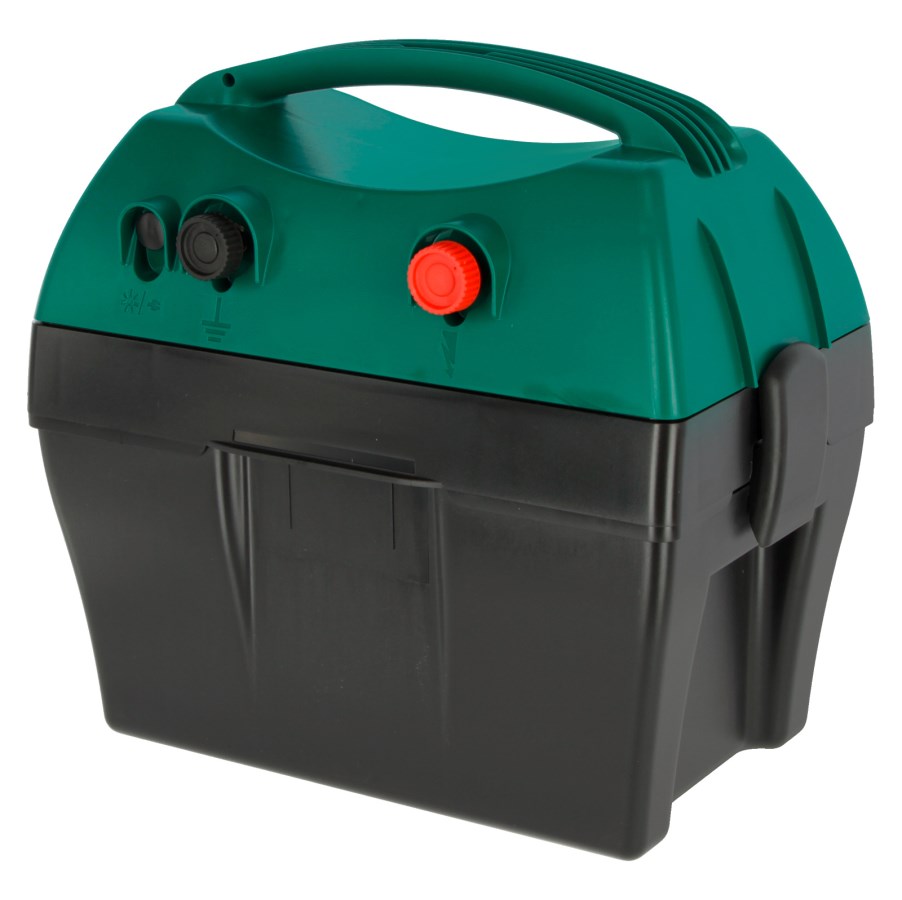

Mobil Power AD 2000 digital

extremely powerful 12 Volt battery unit for mobile use, long fences with vegetation and powerful animals

digital display readout and LED lights for fence and battery voltage

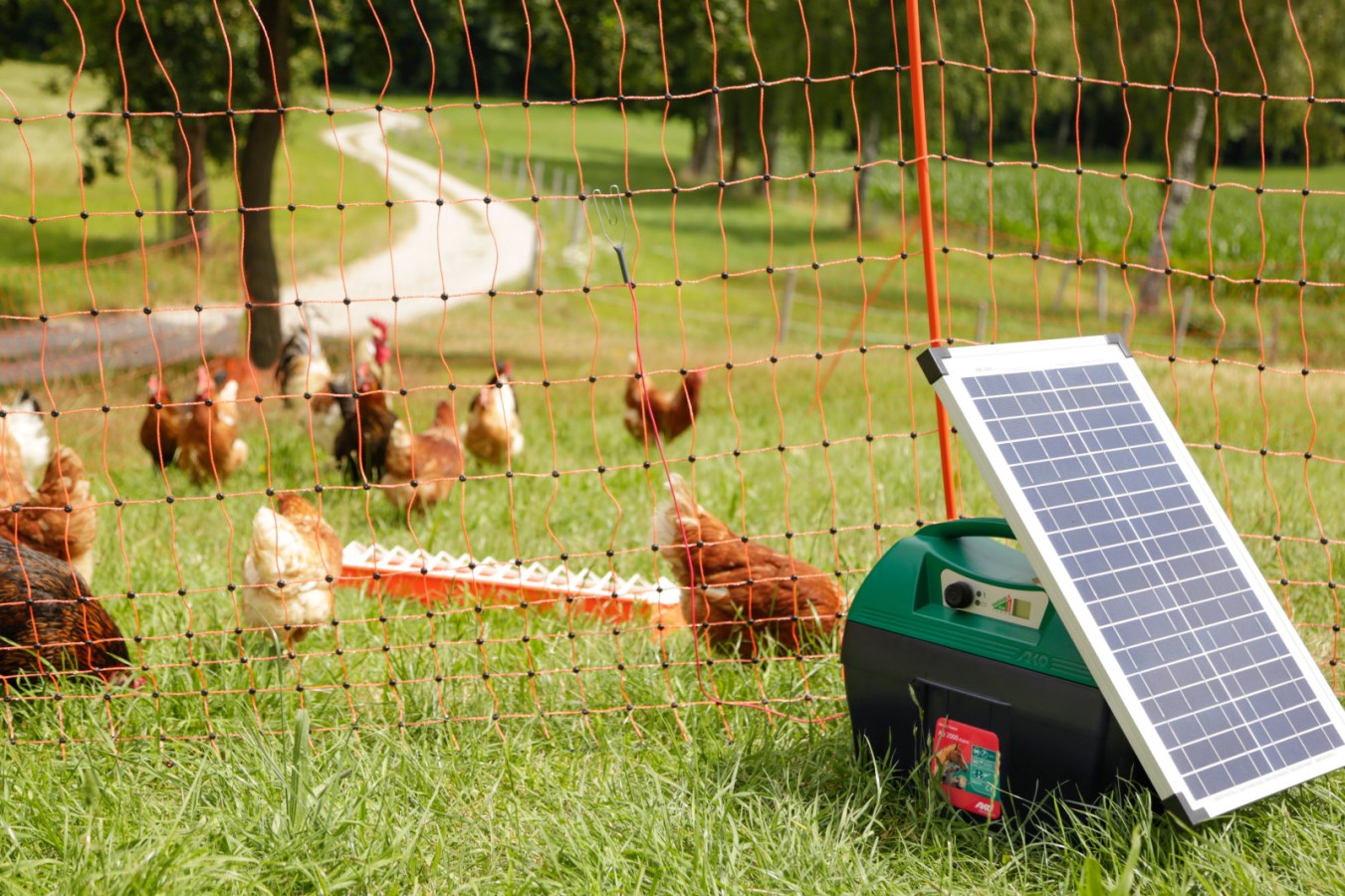

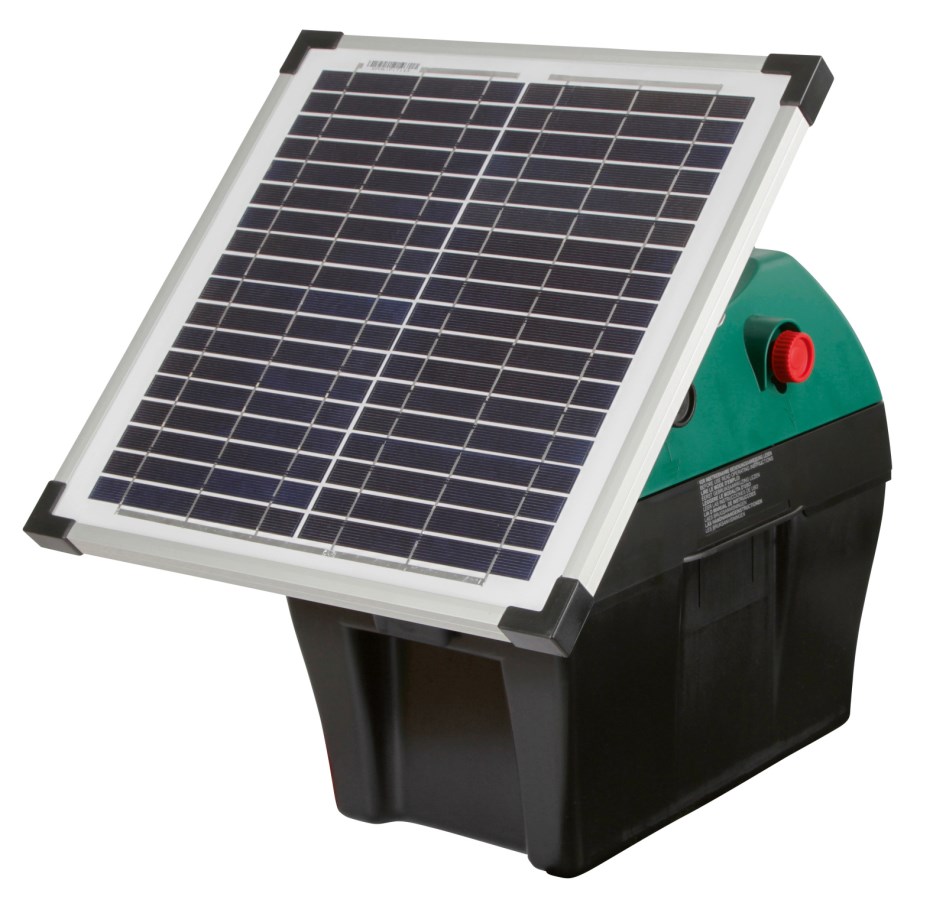

recommended solar module: Item number 375156 (15 Watt) - mounting directly on the device handle

Ref. no.	PU	Pallet
372201	1	33 PAL

Ref. no.	Description	Width	Depth	Height	PU
375256	Solar Panel without Charge Controller	37.5 cm	2 cm	56 cm	1

with 12 Volt full discharge protection
the shock strength can be steplessly adjusted with the manual controller (1 - 20)
can be operated via a 230-V power pack (371012 - not included)
integrated solar charge controller
digital display to indicate the fence voltage, battery voltage and power level
robust, impact-resistant, UV-resistant and weather-resistant housing thanks to the use of high-quality plastics

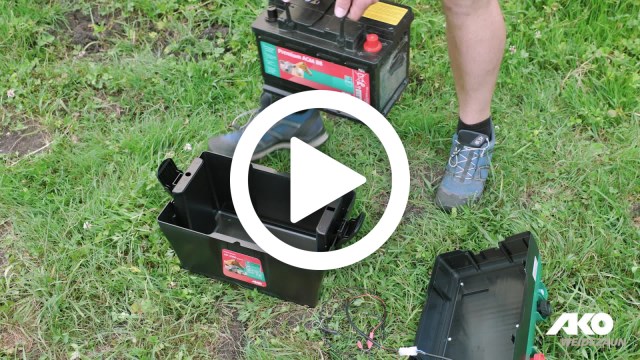

large battery container for the 12-Volt battery
microprocessor controlled
very bright, clearly visible LED light
corresponds to applicable EU safety standards
connection cable not included in the scope of delivery

Model
AD 2000 digital
Ref. no.	372201
Stored Energy	3 J
max. discharge energy	2.1 J
min. discharge energy	0.5 J
max. voltage	10500 V
Voltage in Open Circuit	9600 V
Voltage at 500 Ohms	5200 V
theoretical fence length as per VDE	55 km
max. fence length without vegetation	20 km
max. fence length with medium vegetation	8 km
max. fence length with high vegetation	3 km
Approx. Number of Electrifiable Nets	8
Qty 1 m earth posts	3
Power Consumption	17 mA - 220 mA

Model	Ref. no.	Stored Energy	max. discharge energy	min. discharge energy	max. voltage	Voltage in Open Circuit	Voltage at 500 Ohms	theoretical fence length as per VDE	max. fence length without vegetation	max. fence length with medium vegetation	max. fence length with high vegetation	Approx. Number of Electrifiable Nets	Qty 1 m earth posts	Power Consumption
AD 2000 digital	372201	3 J	2.1 J	0.5 J	10500 V	9600 V	5200 V	55 km	20 km	8 km	3 km	8	3	17 mA - 220 mA

Model	AD 2000 digital
Ref. no.	372201
Stored Energy	3 J
max. discharge energy	2.1 J
min. discharge energy	0.5 J
max. voltage	10500 V
Voltage in Open Circuit	9600 V
Voltage at 500 Ohms	5200 V
theoretical fence length as per VDE	55 km
max. fence length without vegetation	20 km
max. fence length with medium vegetation	8 km
max. fence length with high vegetation	3 km
Approx. Number of Electrifiable Nets	8
Qty 1 m earth posts	3
Power Consumption	17 mA - 220 mA
