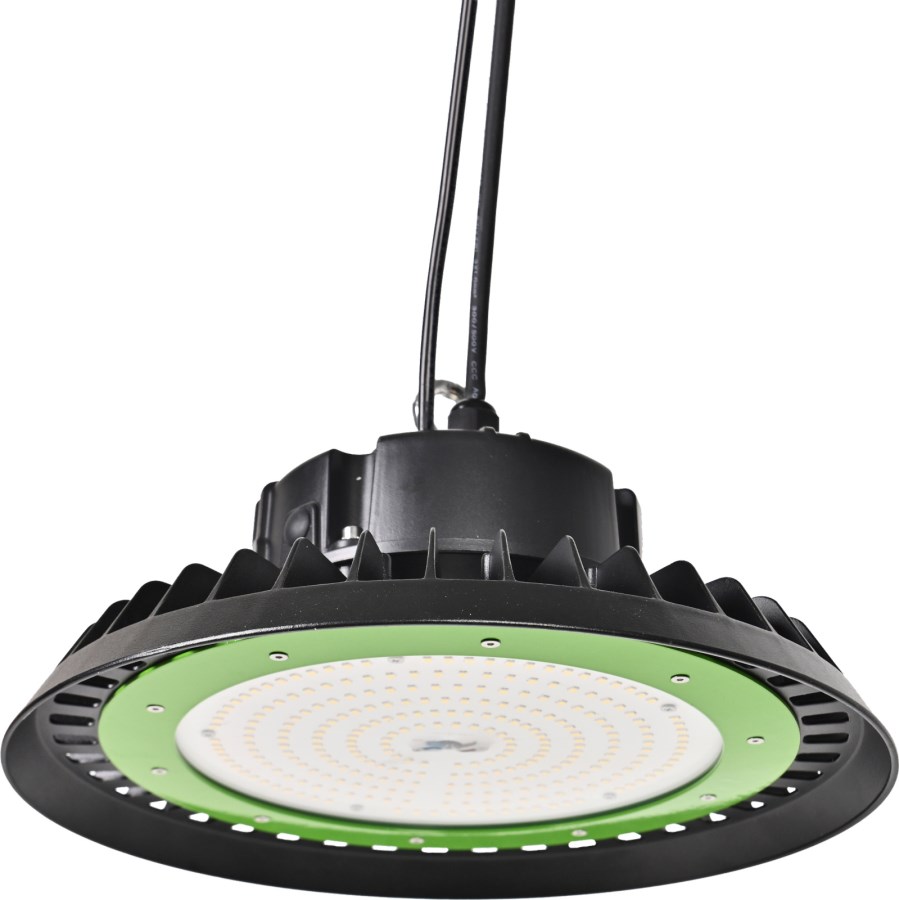

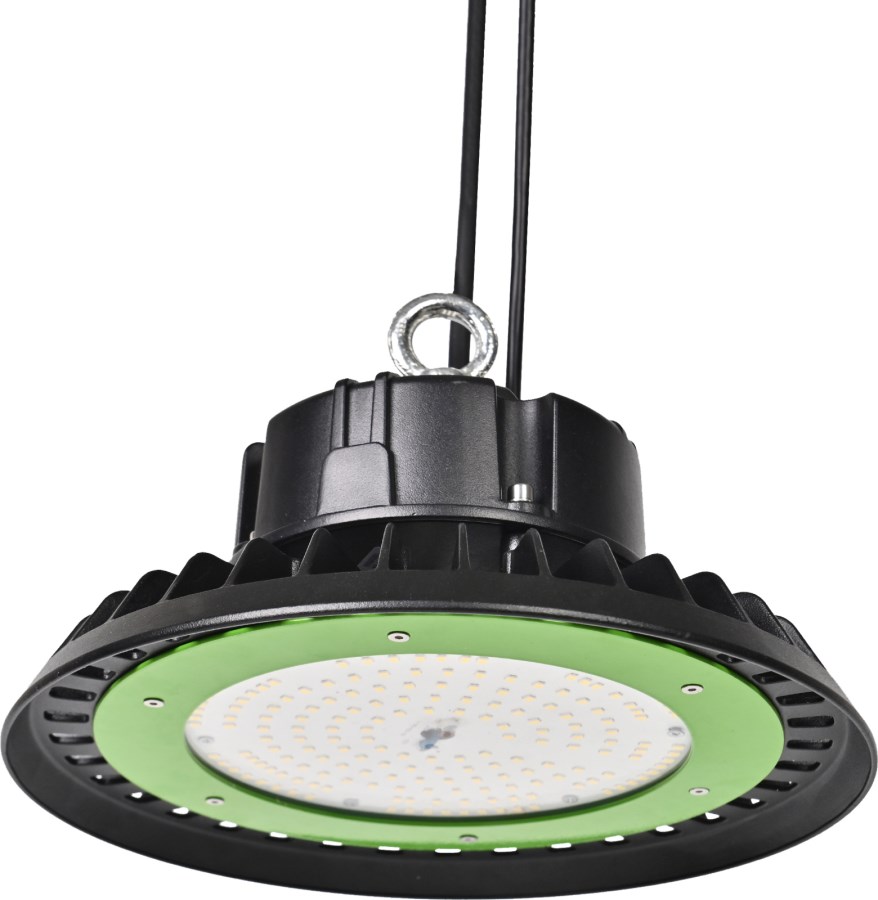

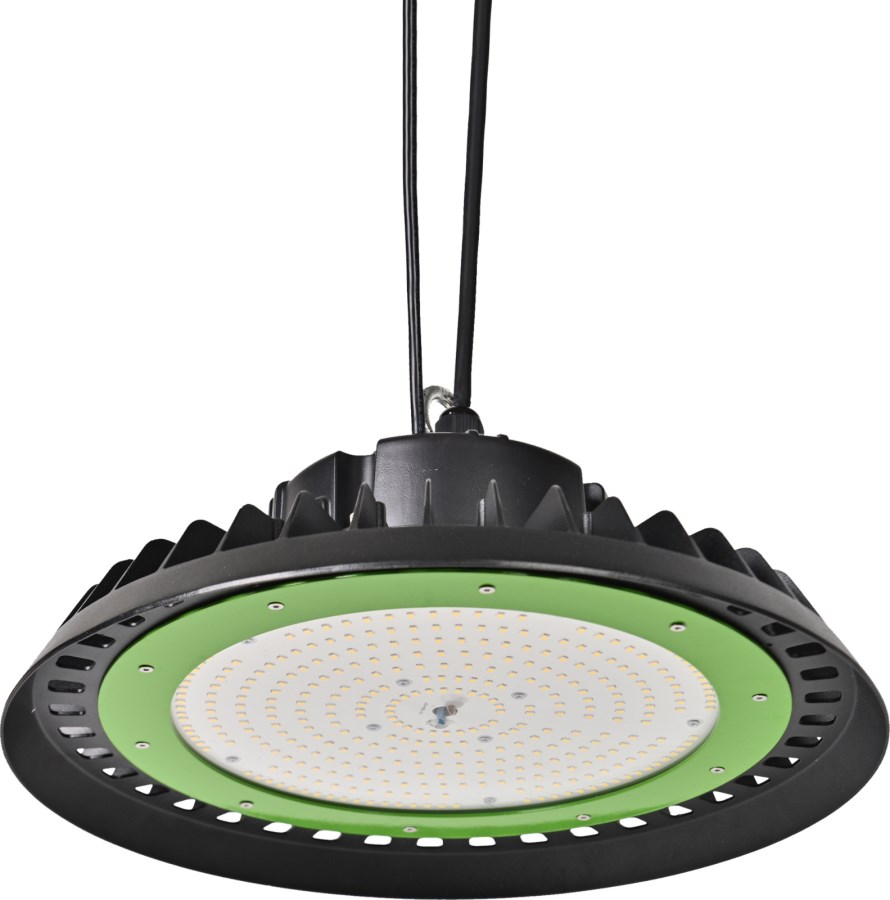

LED Light HiLED Premium Farmer

The LED light, featuring top-quality materials, electronics and workmanship and specially developed for agriculture and demanding conditions, provides additional benefits in terms of safety, resilience and working life.

  • resistant to ammonia (DLG-tested)
  • an insulated LED driver with integrated overload, short-circuit, and no-load protection provides additional safety for the LEDs, and extends their working life
  • optimised light spectrum promotes fertility, immune system, animal well-being and performance
  • high colour rendering index for a particularly natural colour perception of e.g. blood, urine, milk or other illuminated objects
  • extremely efficient through high lumen output
  • special heat sink shape for optimised heat dissipation
  • protected against powerful water jets and dust-proof (IP65 protection class)
  • flicker-free, so also suitable for animals with high visual acuity
  • cover made from hardened glass
  • with D marking according to DIN EN 60598-2-24, therefore suitable for areas at risk of fires due to combustible dusts or fibres (hay storage, feed, litter, etc.)
  • suitable for outdoor use
  • GS-tested
  • 8-year warranty

available from: February 2025

Items
Ref. no.OutputLengthWidthHeightDimming functionLuminous FluxColour TemperaturePUPallet
345910100 W14.9 cm25.3 cm25.3 cmdimmable16000 lm5700 K1/848 PAL
345911150 W15.5 cm30.8 cm30.8 cmdimmable24000 lm5700 K1/436 PAL
345912200 W16 cm35.4 cm35.4 cmdimmable32000 lm5700 K1/424 PAL
345913240 W16 cm40.5 cm40.5 cmdimmable38400 lm5700 K1/416 PAL
Accessories
Ref. no.DescriptionColourMaterialsuitable forPU

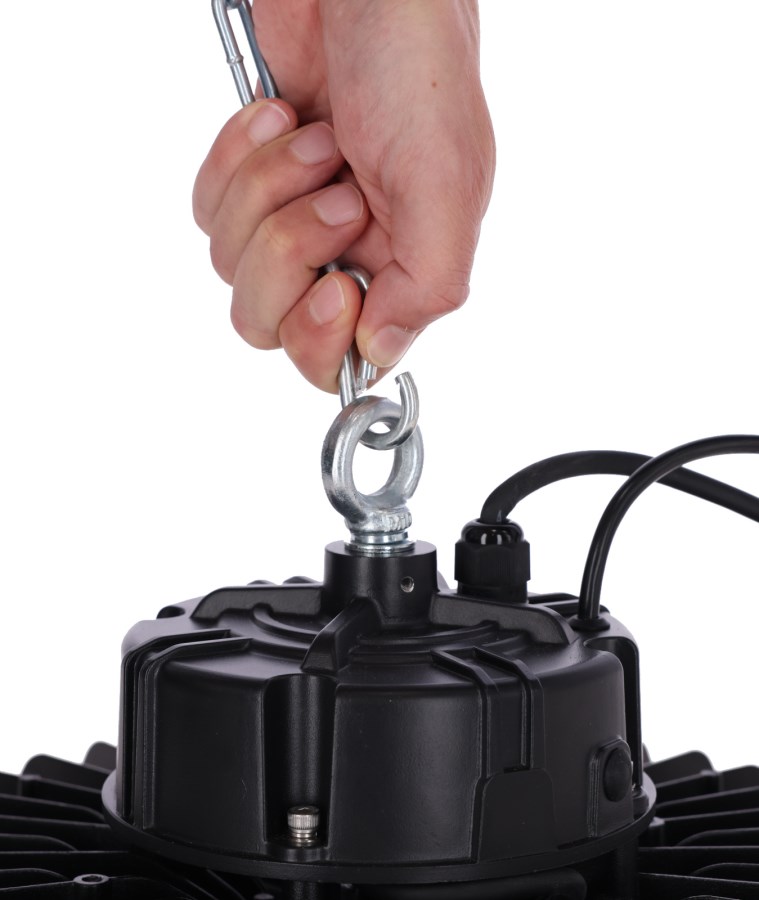

345914Mounting Bracket for Ceiling and Wall Mounting LED Light HiLed Premium FarmerblackMetal3459101/10
345915Mounting Bracket for Ceiling and Wall Mounting LED Light HiLed Premium FarmerblackMetal3459111/10
345916Mounting Bracket for Ceiling and Wall Mounting LED Light HiLed Premium FarmerblackMetal3459121/10
345917Mounting Bracket for Ceiling and Wall Mounting LED Light HiLed Premium FarmerblackMetal3459131/10

Technical Data
345910
Voltage100 V AC - 277 V AC
Mains Frequency50 Hz - 60 Hz
Luminous Efficacy160 lm/W
Light Angle (half Intensity Angle)120 °
Chip Service Life (L70)> 100000 h
LED TypeSMD
Dimming function1…10 V, 10 V PWM, 0 - 100 kΩ resistance
Materialdie-cast aluminium with anti-corrosion coating / tempered glass / Stainless Steel
Operating ambient temperature-30 °C - 50 °C
Colour Rendering (CRI)Ra > 80
Power factor> 0.9
Protection TypeIP65
345911
Voltage100 V AC - 277 V AC
Mains Frequency50 Hz - 60 Hz
Luminous Efficacy160 lm/W
Light Angle (half Intensity Angle)120 °
Chip Service Life (L70)> 100000 h
LED TypeSMD
Dimming function1…10 V, 10 V PWM, 0 - 100 kΩ resistance
Materialdie-cast aluminium with anti-corrosion coating / tempered glass / Stainless Steel
Operating ambient temperature-30 °C - 50 °C
Colour Rendering (CRI)Ra > 80
Power factor> 0.9
Protection TypeIP65
345912
Voltage100 V AC - 277 V AC
Mains Frequency50 Hz - 60 Hz
Luminous Efficacy160 lm/W
Light Angle (half Intensity Angle)120 °
Chip Service Life (L70)> 100000 h
LED TypeSMD
Dimming function1…10 V, 10 V PWM, 0 - 100 kΩ resistance
Materialdie-cast aluminium with anti-corrosion coating / tempered glass / Stainless Steel
Operating ambient temperature-30 °C - 50 °C
Colour Rendering (CRI)Ra > 80
Power factor> 0.9
Protection TypeIP65
345913
Voltage100 V AC - 277 V AC
Mains Frequency50 Hz - 60 Hz
Luminous Efficacy160 lm/W
Light Angle (half Intensity Angle)120 °
Chip Service Life (L70)> 100000 h
LED TypeSMD
Dimming function1…10 V, 10 V PWM, 0 - 100 kΩ resistance
Materialdie-cast aluminium with anti-corrosion coating / tempered glass / Stainless Steel
Operating ambient temperature-30 °C - 50 °C
Colour Rendering (CRI)Ra > 80
Power factor> 0.9
Protection TypeIP65
Technical Data345910345911345912345913
Voltage100 V AC - 277 V AC100 V AC - 277 V AC100 V AC - 277 V AC100 V AC - 277 V AC
Mains Frequency50 Hz - 60 Hz50 Hz - 60 Hz50 Hz - 60 Hz50 Hz - 60 Hz
Luminous Efficacy160 lm/W160 lm/W160 lm/W160 lm/W
Light Angle (half Intensity Angle)120 °120 °120 °120 °
Chip Service Life (L70)> 100000 h> 100000 h> 100000 h> 100000 h
LED TypeSMDSMDSMDSMD
Dimming function1…10 V, 10 V PWM, 0 - 100 kΩ resistance1…10 V, 10 V PWM, 0 - 100 kΩ resistance1…10 V, 10 V PWM, 0 - 100 kΩ resistance1…10 V, 10 V PWM, 0 - 100 kΩ resistance
Materialdie-cast aluminium with anti-corrosion coating / tempered glass / Stainless Steeldie-cast aluminium with anti-corrosion coating / tempered glass / Stainless Steeldie-cast aluminium with anti-corrosion coating / tempered glass / Stainless Steeldie-cast aluminium with anti-corrosion coating / tempered glass / Stainless Steel
Operating ambient temperature-30 °C - 50 °C-30 °C - 50 °C-30 °C - 50 °C-30 °C - 50 °C
Colour Rendering (CRI)Ra > 80Ra > 80Ra > 80Ra > 80
Power factor> 0.9> 0.9> 0.9> 0.9
Protection TypeIP65IP65IP65IP65
