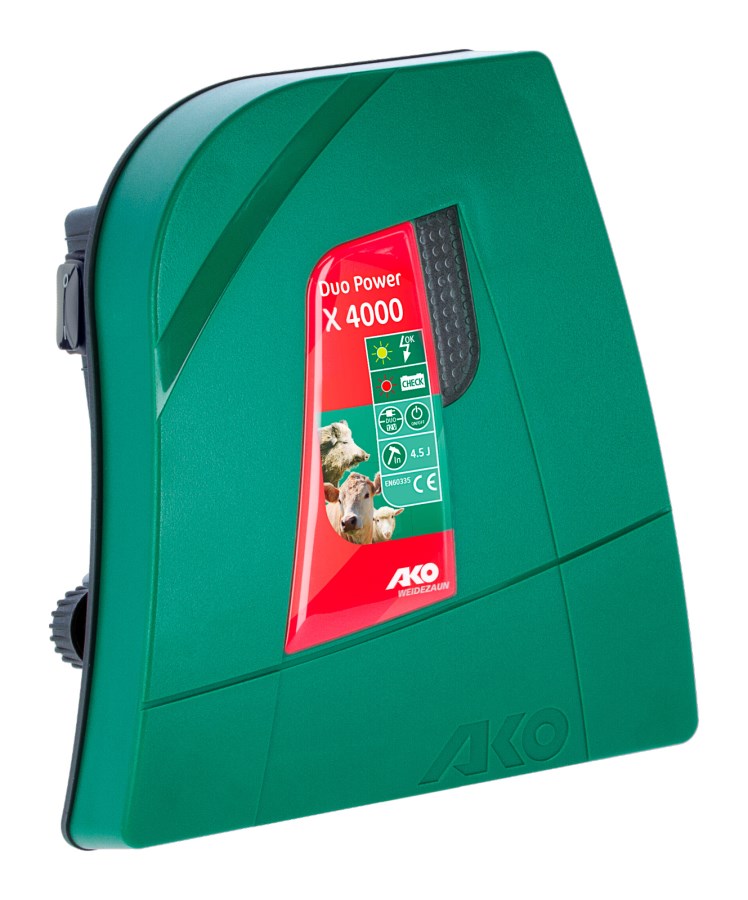

Duo Power X 4000

  • 12 V / 230 V DUO device with extremely high output power
  • for longer fences, also with vegetation
  • ideal for use also with strong animals and for keeping wild boar and wolves at bay

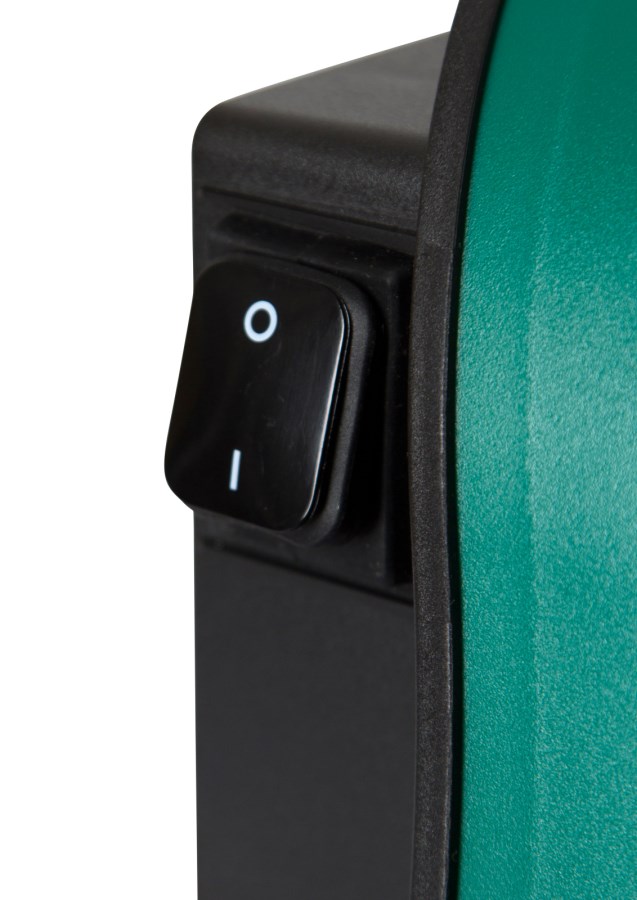

  • with High/Low/OFF switch for 2 different output powers
  • 5-year warranty

multi-colour LED bar graph display for output voltage and battery control

recommended solar module: Item number. 375251 (25 Watt), connection directly to the 12-Volt battery, mounting e.g. on a metal box or: Item number 375559 (55 Watt), connection directly to the 12-Volt battery plus ground anchor kit 442382 or fixing set 442386 for metal box

441039: Starter kit incl. 25 Watt solar module

Items
Ref. no.PUPallet
372874188 PAL
4410391
Accessories
Ref. no.DescriptionWidthDepthHeightPU
375251Solar Panel incl. Charge Controller37.5 cm2 cm56 cm1

  • optimised power consumption thanks to energy-saving mode
  • deep discharge protection with 12 V operation
  • microprocessor controlled

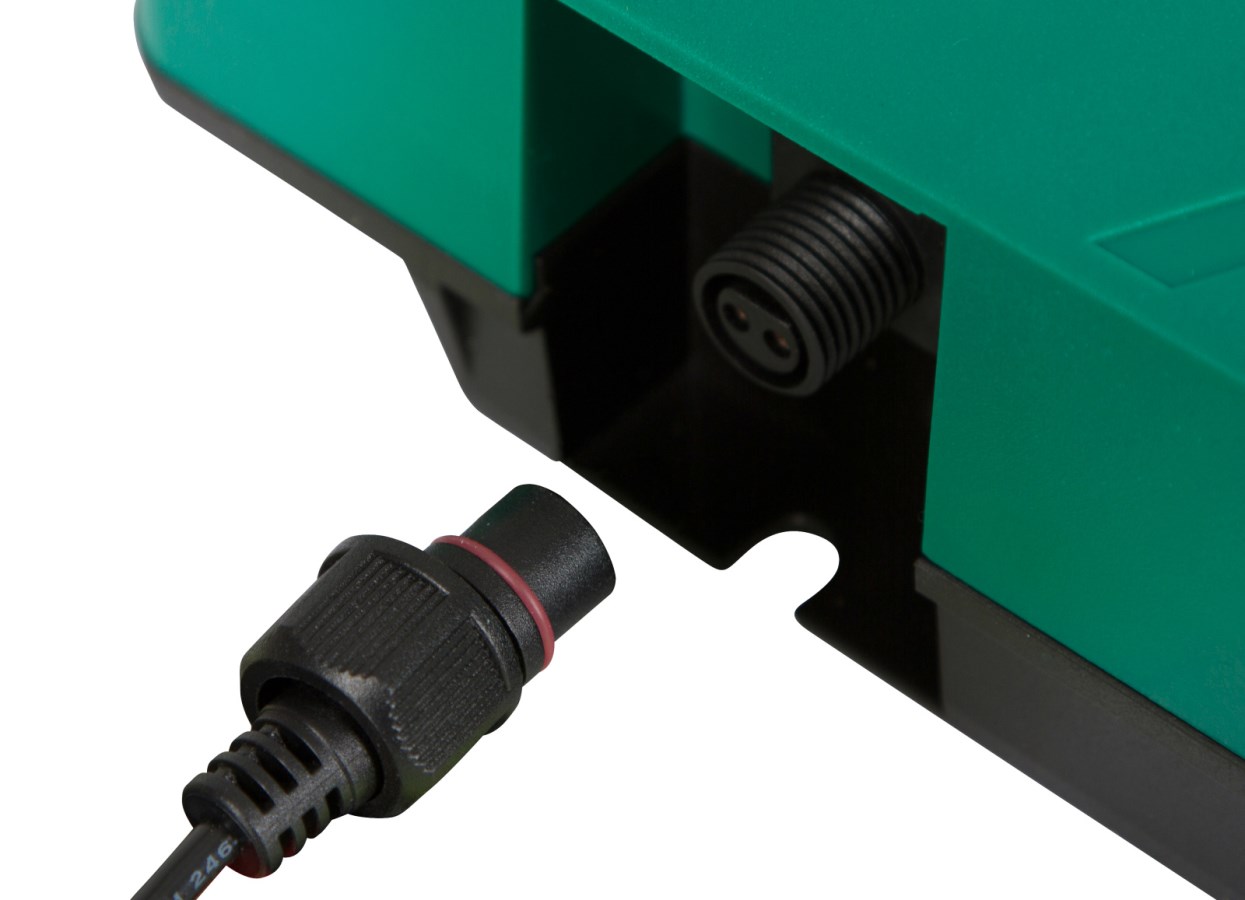

  • Plug Connector with Screw Fuse
  • robust, impact-resistant, UV-resistant and weather-resistant housing thanks to the use of high-quality plastics

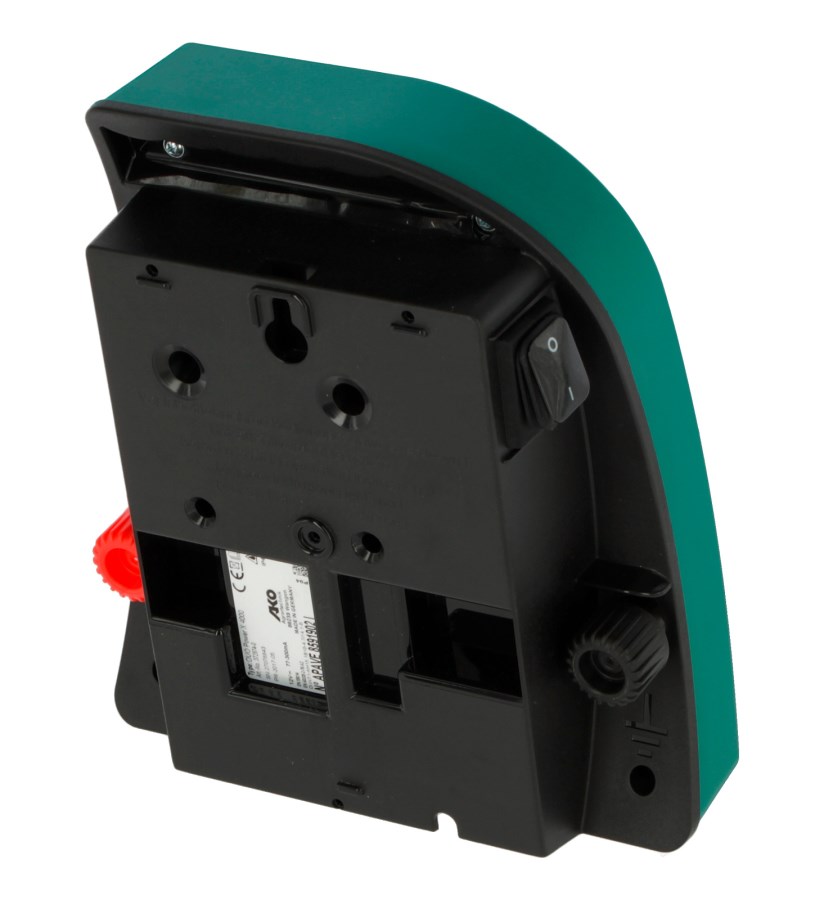

  • integrated hanging device for wall mounting
  • very bright, clearly visible LED light
  • corresponds to applicable EU safety standards
  • (suitable for metal box 44656 and 44650)

Model
X 4000
Ref. no.372874
Stored Energy5.5 J
max. discharge energy4 J
max. voltage11900 V
Voltage in Open Circuit10300 V
Voltage at 500 Ohms8400 V
theoretical fence length as per VDE110 km
max. fence length without vegetation35 km
max. fence length with medium vegetation9 km
max. fence length with high vegetation4 km
Approx. Number of Electrifiable Nets16
Qty 1 m earth posts2
Power Consumption117 mA - 300 mA
X 4000
Ref. no.441039
Stored Energy5.5 J
max. discharge energy4 J
max. voltage11900 V
Voltage in Open Circuit10300 V
Voltage at 500 Ohms8400 V
theoretical fence length as per VDE110 km
max. fence length without vegetation35 km
max. fence length with medium vegetation9 km
max. fence length with high vegetation4 km
Approx. Number of Electrifiable Nets16
Qty 1 m earth posts2
Power Consumption117 mA - 300 mA
ModelX 4000X 4000
Ref. no.372874441039
Stored Energy5.5 J5.5 J
max. discharge energy4 J4 J
max. voltage11900 V11900 V
Voltage in Open Circuit10300 V10300 V
Voltage at 500 Ohms8400 V8400 V
theoretical fence length as per VDE110 km110 km
max. fence length without vegetation35 km35 km
max. fence length with medium vegetation9 km9 km
max. fence length with high vegetation4 km4 km
Approx. Number of Electrifiable Nets1616
Qty 1 m earth posts22
Power Consumption117 mA - 300 mA117 mA - 300 mA

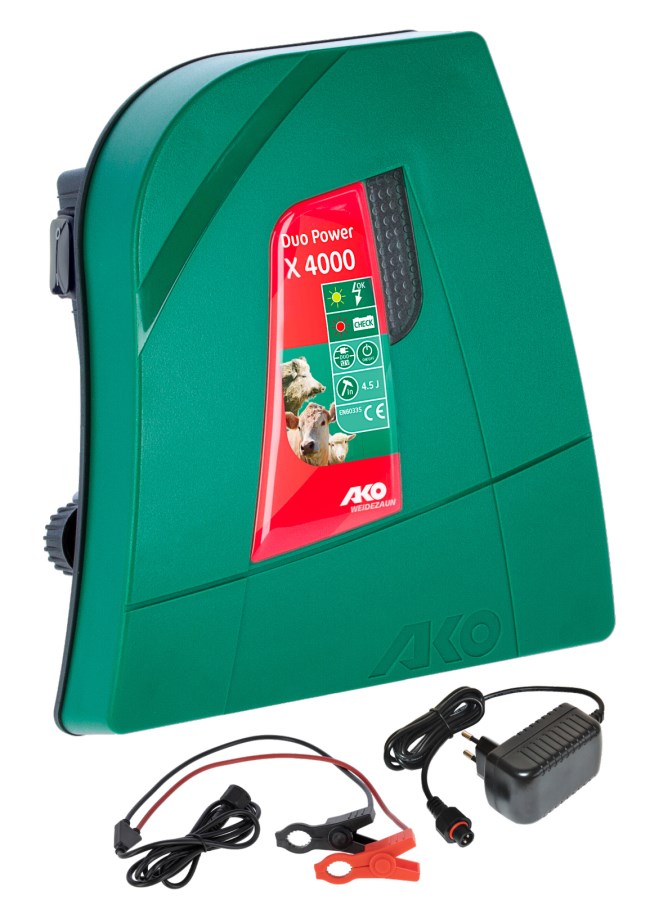

  • 1 x fence unit
  • 1 x 230 volt power pack (371023)
  • 1 x 12 Volt connection cable (E268739)
  • 1 x ground connector cable
  • 1 x fence connector cable
  • 1 x warning sign (44623)

Preview imageItem. No.Description372874
Connector Cable 12 V for DUOAKO268739Connector Cable 12 V for DUOx
 AKO268861Knurled nut M8 BIG blackx
 AKO268862Knurled nut M8 BIG redx
